FACILITIES

• Current Forging Capacity: 240 ton / month. ( 160 Ton-Spare CapacityAvailable)

• Forging with Induction Heaters: 02 Forging Line ( Another Press Line 600 Ton is under Expansion Plan

• Forging Component Size: Round Components From OD 50 mm to 110 mm & Shaft Components from Dia 30 to 40 mm Length upto 100 mm

• Normalizing Capacity: 250 Ton / month

• Shot Blasting Capacity: 250Ton / Month

01

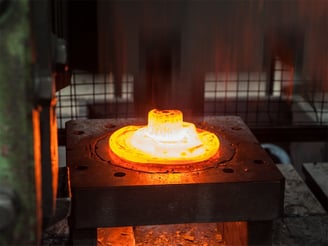

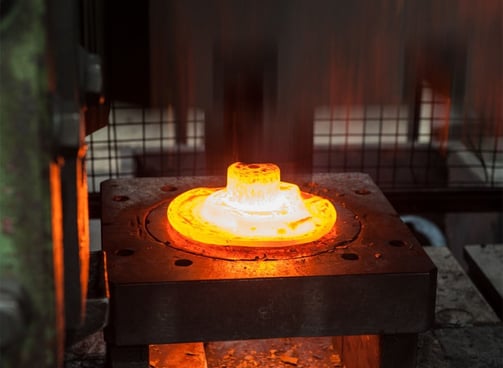

Hot Forging

02

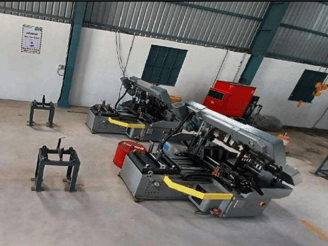

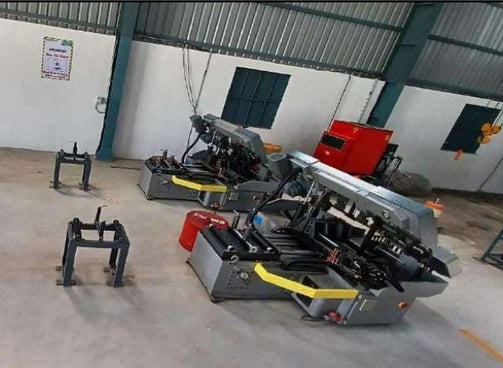

Band Saw Billet Cutting Facility

Bar into Billet Cutting By Double Column Automatic Band Saw Machine for Higher Cutting Rate. Make – Meba ( German )* Bar Dia Cutting Range (Capacity) :- 25 mm to 300 mm

03

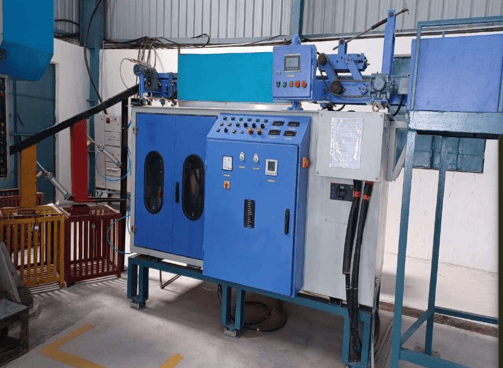

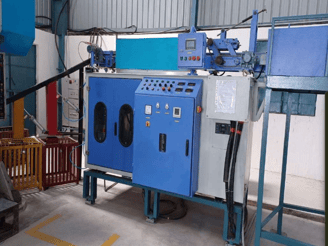

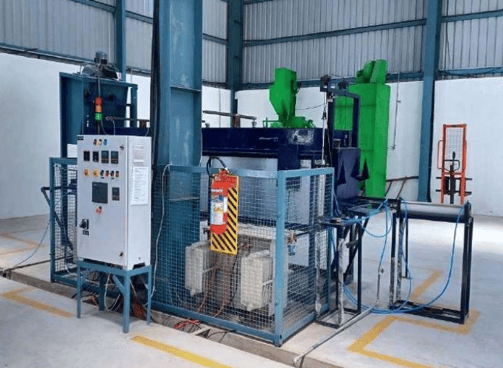

Induction Billet Heating- Furnace

• Induction Billet Heaters -02 Nos

• Capacity : 300 KW.–01Nos

• Capacity : 150 KW – 01 Nos

• Round Billets : 30 mm to 60 mm.

• Duel Colour make-”Keller“infra red radiation pyrometer, temp. controller.

• Installed the over heating& Under Heating Billet Accept Reject Mechanism.

• Make – Electro Therm & Supertherm

04

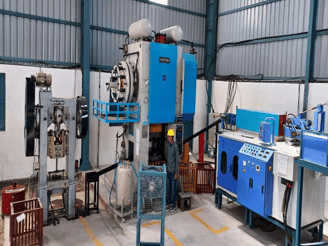

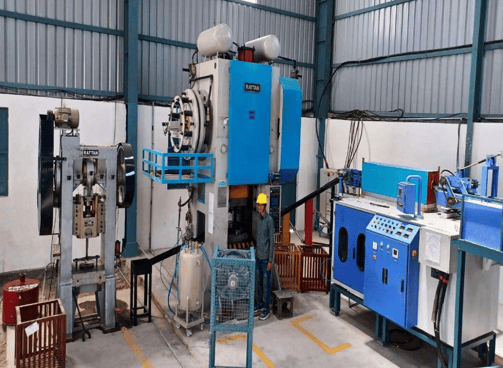

Forging Line(400 Ton Power Press)

• Round Bar Forging Capacity : 30 to 63mm

• Ringsize: 50 to 110 mm

• Height: Up to 100mm

• Weight: 0.200 kg to 1.40Kg

• Production: 120 Ton/Month

We specialize in advanced hot forging and precision engineering solutions for industries ranging from automotive to railway systems.

• Round Bar Forging Capacity : 30 to 63mm

• Part OD: : 70 to 115mm

• Height: Up to 100mm

• Weight: 0.200 kg to 1.40Kg

• Production: 120 Ton/Month

05

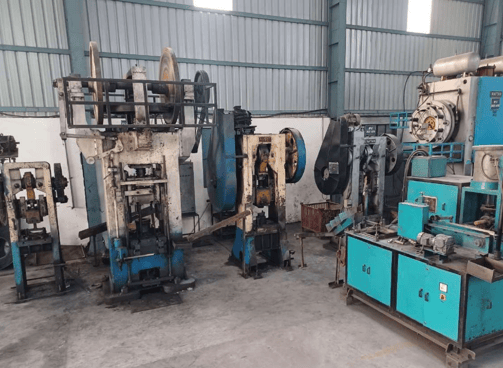

Forging Line(300 Ton Friction Screw Press)

06

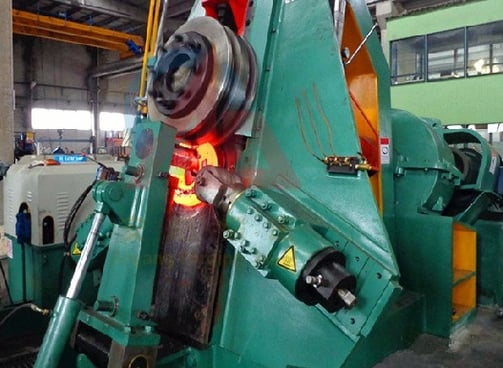

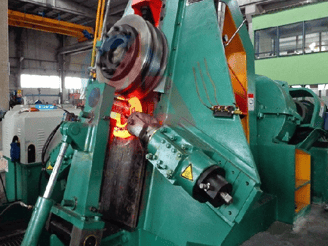

Ring Rolling Press

It can roll forging part ring diameter 80mm to 200mm with width of 15mm to 80mm

08

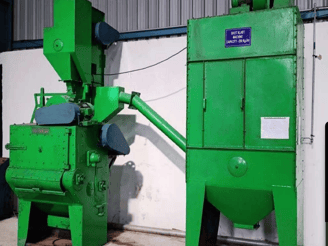

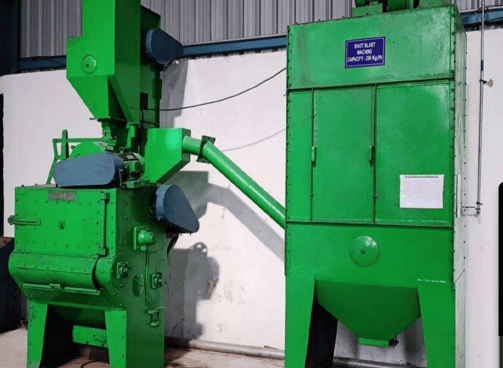

Shot Blasting Machine

Shot Blasting MachineCapacity - 600 Kg / Hr Cycle Time – 15 Minutes Spec- 27 x 36 “ – Tumblast

Chamber size- 1320 x 1100 x1800 mm

07

Normalizing Furnace

Continues Pusher Type Electrically Heated Normalizing Furnaces -Capacity - 250 kg/ hr Pusher type -Furnaces Operating Temp-880-950 *C. & Integrated in Scada systems for Temp. monitoring & TT Diagram to meet the CQI -9 Compliances.

Future Plan – Expansion (Capex)

Hot forging 1600 Ton Press – Under process – June 2026

New Heat treatment facilities- ISO – Annealing / Through Hardening Tentatively in October 2026
